Aquatron Separator

All Aquatron models utilize the patented Aquatron separator, which separates the solid waste (faeces and paper) from flushing water and urine. The aquatron systems work by utilizing the kinetic fluid’s moving energy, centrifugal force and gravity. No moving parts or energy consumption.

Several toilets can be connected to the same separator and flushed simultaneously.

There are three different models on the Aquatron Separator, 50 mm outlet side or down and the larger one with 110 mm outlet aside.

Aquatron Separator down

Aquatron 50

Suitable for the simple vacation house for 2-3 persons where the space is very limited.

  • The bio chamber (50 liters) empties approximately every 150 visits.
  • Two chambers can be used interchangeably.
  • Compost worms can be used directly in the box even at low load
  • Can be customized for any level of safety regulations for individual sewage

Technical data:

  • Height: approx 95cm (total with separator och bio chamber)
  • Size of bio chamber (LxWxH): 600x600x400mm
  • The chamber volume: approx 50 liter
  • Weight: ca 25kg

Installation & maintenance manual

Aquatron 2×50

Suitable for the simple vacation house for 2-3 persons where the space is very limited.

  • The bio chamber (50 liters) empties approximately every 150 visits.
  • The two chambers can be swithed interchangeably.
  • Compost worms can be used directly in the box even at low load
  • Can be customized for any level of safety regulations for individual sewage

Technical data:

  • Height: approx 95cm (total with separator och bio chamber)
  • Size of bio chamber (LxWxH): 600x1040x400mm
  • Each chamber volume: approx 50 liter
  • Weight: approx 30kg

Installation & maintenance manual

Aquatron 90

Suitable for the the family vacation house, 2-3 persons.

  • The bio chamber (90 liters) empties approximately every 200 visits.
  • If two chambers are used, the post-composting may take place directly in the chamber.
  • Compost worms can be used directly in the box even at low load
  • Can be customized for any level of safety regulations for individual sewage

Technical data:

  • Height: approx 110cm (total with separator och bio chamber)
  • Size of bio chamber (LxWxH): 700x600x600mm
  • Chamber volume: approx 90 liter
  • Weight: approx 40kg

Installation & maintenance manual

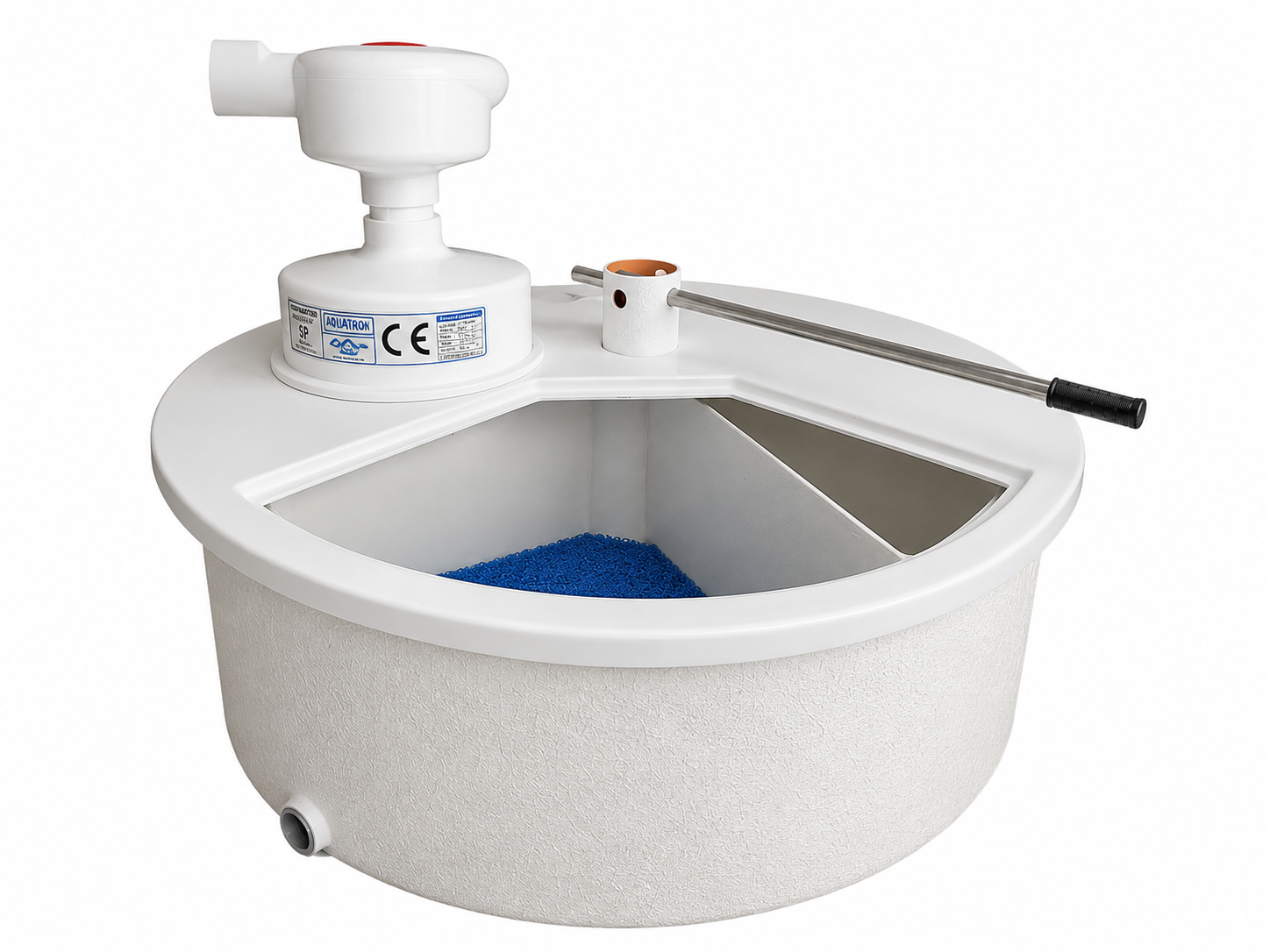

Aquatron 4×100

Suitable for the the family vacation house or small household with 5 persons, permanent living.

  • The bio chamber (100 liters) is rotated every 300 visit or 3-4 months.
  • A full rotation takes approx 1 year, then the the post-composted chamber is ready to be used again, or emptied.

Options:

  • Aquatron UV-unit
  • Aquatron Phosphorus trap

Technical data:

  • Height: approx 110cm (total with separator och bio chamber)
  • Size of bio chamber (WxH): 1150x550mm
  • Chamber volume: 4 chambers, approx 100 liter each
  • Weight: approx 55kg

Installation & maintenance manual

Scale Drawing

Aquatron 4x100

Aquatron 4×200

Suitable for the the family vacation house or small-medium household with 5 persons, permanent living.

  • The bio chamber (200 liters) is rotated every 600 visit or 3-4 months.
  • A full rotation takes approx 1 year, then the the post-composted chamber is ready to be used again, or emptied.

Options:

  • Aquatron UV-unit
  • Aquatron Phosphorus trap

Installation & maintenance manual

Scale drawing

Aquatron 4x100

Aquatron Ultimate (NZ)

Extra strong model for outdoor use
Rainproof and protective hood against strong UV light from the sun for longer life.

Suitable for the the family vacation house or small-medium household with 5 persons, permanent living.

  • The bio chamber (200 liters) is rotated every 600 visit or 3-4 months.
  • A full rotation takes approx 1 year, then the the post-composted chamber is ready to be used again, or emptied.

Options:

  • Aquatron UV-unit
  • Aquatron Phosphorus trap

Installation & maintenance manual

Aquatron 4×300

Suitable for large households, schools, day care, small offices and other mid size buildings where there is difficult to connect to the city sewage.

  • The bio chamber (300 liters) is rotated every 900 visit or 3-4 months.
  • A full rotation takes approx 1 year, then the the post-composted chamber is ready to be used again, or emptied.

Options:

  • Aquatron Drainage modul
  • Aquatron UV-unit
  • Aquatron Phosphorus trap

Technical data:

  • Height: approx 140cm (total with separator och bio chamber)
  • Size of bio chamber (WxH): 1580x800mm
  • Chamber volume: 4 chambers, approx 300 liter each
  • Weight: approx 85kg

Installation & maintenance manual

Scale Drawing

Aquatron Wagon 200

A smart solution with possibility to roll the bio chamber to the place where the post-composting is taken care of – preferably you use two wagons that can be switched. The wagon 200 suits small permanent living household or vacation house.

  • The bio chamber (200 liters) empties approximately every 500 visits.
  • Compost worms can be used directly in the wagon even at low load
  • Can be customized for any level of safety regulations for individual sewage

Technical data:

  • Height: approx 115cm (total with separator och bio chamber)
  • Size of bio chamber (LxWxH): 622x815x650mm
  • Chamber volume: approx 200 liter
  • Weight: approx 40kg

Installation & maintenance manual

Aquatron 1200

Suitable for the schools, day care, small offices and other mid size buildings where there is difficult to connect to the city sewage.

The bio chamber holds up to 1200 liter. The post-composting is in the same chamber, on the one side, fecalies come in and in the other the compost comes out. Very often, these systems are so effective in composting that there is no compost soil to be taken care of. Compost worms can be used directly in the composting chamber.

Aquatron 1200 is currently used in a number of schools and other buildings with installations that have been in operation for plenty of years. Contact us for references.

Options:

  • Aquatron UV-unit
  • Aquatron Phosphorus trap

Technical data:

  • Height: approx 187cm (total with separator och bio chamber)
  • Size of bio chamber (LxWxH): 1870x800x1275mm
  • Chamber volume: 1200 liter
  • Weight: approx 120kg

Installation & maintenance manual

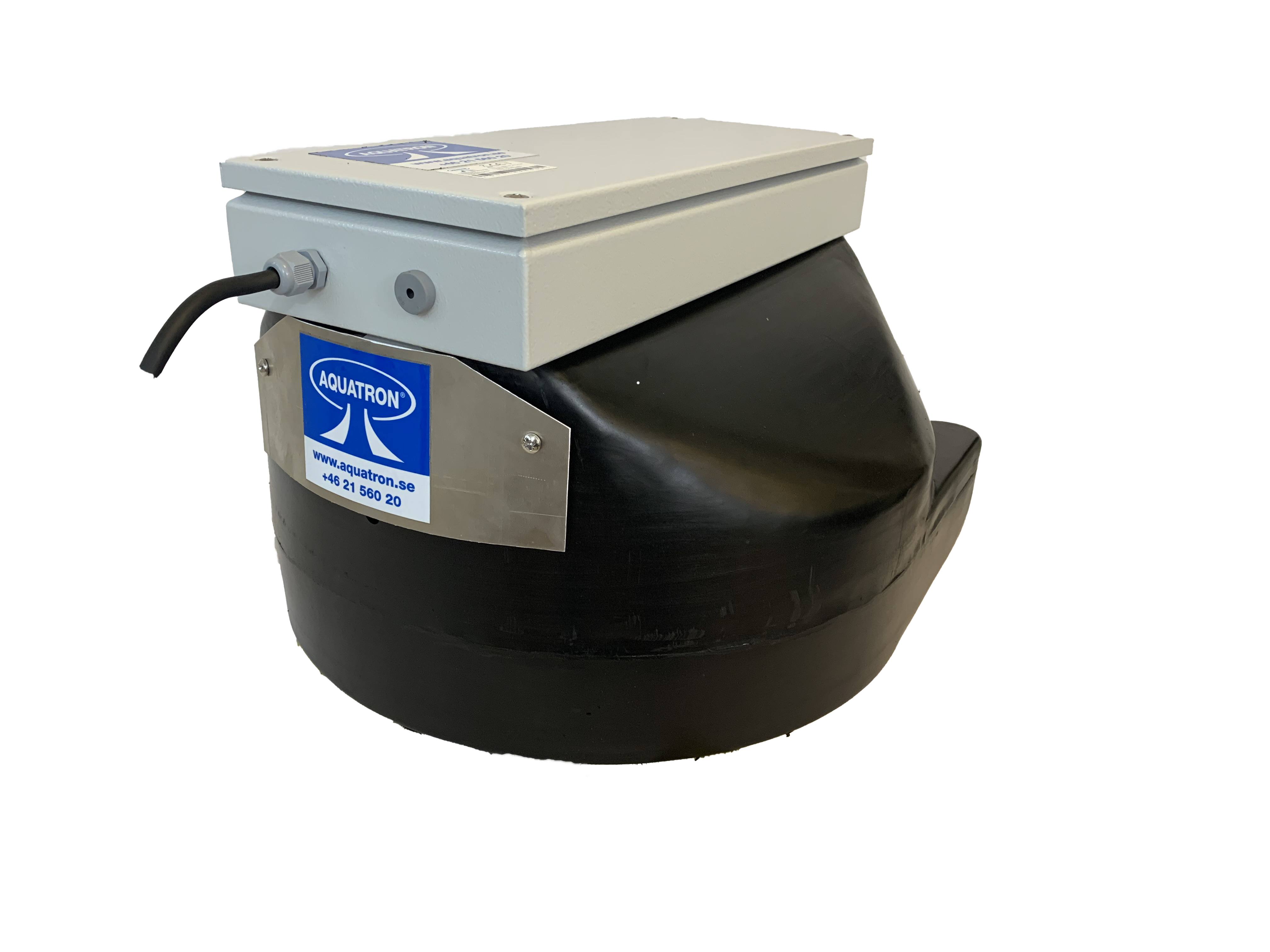

Aquatron UV

Aquatron’s UV unit utilizes both the water screw movement caused by the Meander effect as well as the threshold effect (all particles spin and are illuminated on all sides several times), which means that even suspended water is fully exposed and a very good bactericidal effect is achieved.

To verify the worst case in diarrhea condition, a test with diarrhea was performed in three liters of rinsing water and the sample was taken immediately after the uv irradiation.
The analysis shows that the effect is practically 100% bactericidal.

An advantage of Aquatron’s UV unit is that the liquid never touches the UV lamp, which means that the effect does not quickly deteriorate as some other UV systems on the market.

The life of the two fluorescent lamps is about 4-5 years if they stand around the clock, a buzzer alarms when a fluorescent lamp breaks.

The UV unit can withstand 250 liters / hour ie. 6,000 l / day The approved test is done at 468 liters / hour

Installation & maintenance manual

Aquatron UV system

Aquatron phosphorus trap

Smart phosphor trap that you can easily handle yourself and get a circulation on your own site.

Works only with Aquatron system due to only toilet water is lead thru it.

A normal phosphorus trap has to use 500-1 000 kg phosphorus binding material and all wastewater from the household is led through. Phosphorus Binding material works better the more concentrated wastewater is. For Aquatron phosphorus trap, only the toilet water is led thru it.
By using an Aquatron system toilet water is separated from waste and only 50kg phosphorus binding materials needed.

Benefit
• Small and easy to install
• Cost-effective
• Need no truck to replace binging material
• Easy to spread your self

Only needed in those places in the world that have extra high phosphorus purification requirements.

Aquatron Fosforfälla
