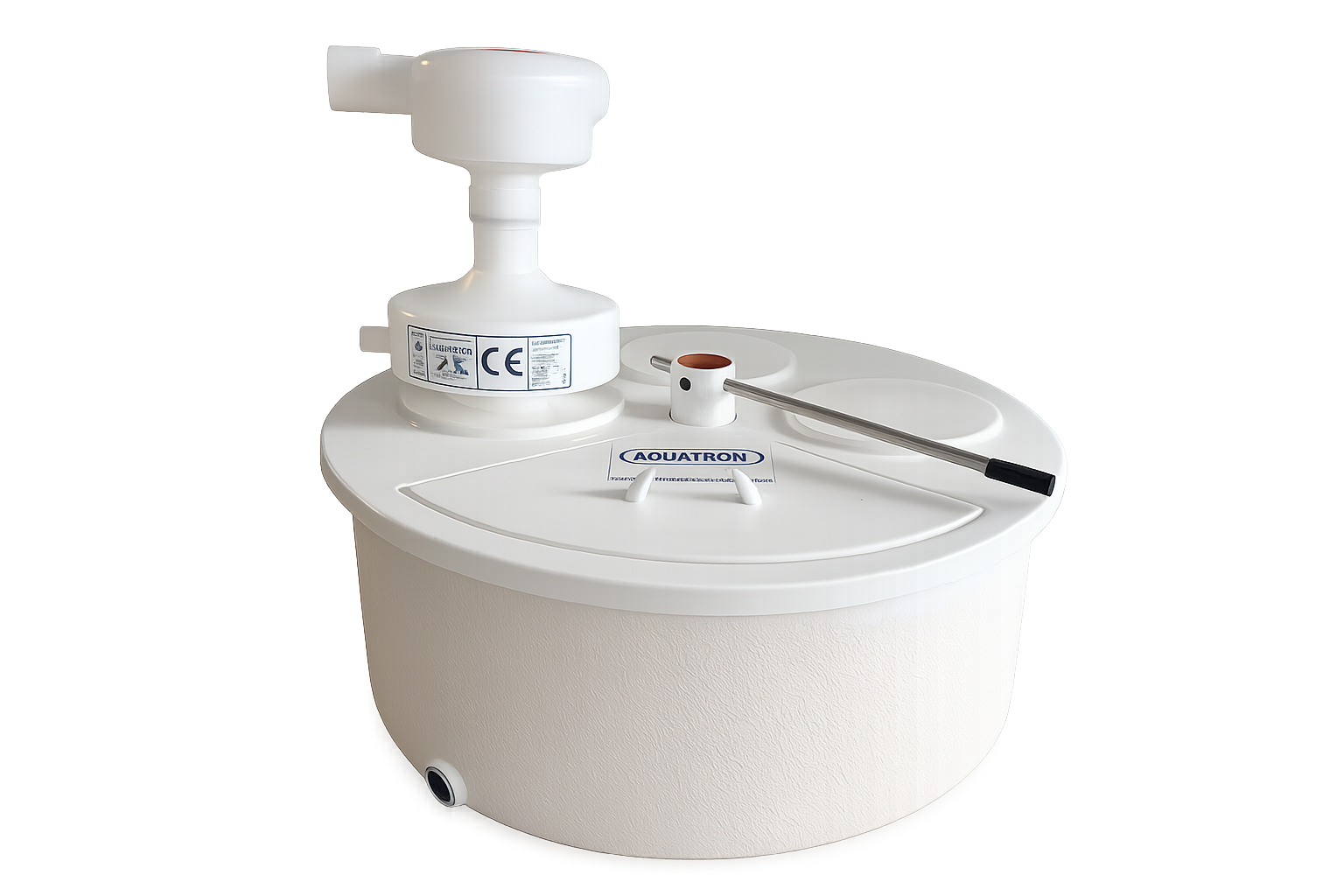

Aquatron 4×75 is 10cm lower than 4×100 and is sometimes better suited when you are short on height..
Aquatron 4×75 has an inner composting chamber which is subdivided into four sections, each compartment having a volume of approx. 100 liters. The capacity of one compartment is about 300 visits before turning the barrel for a new compartment (the frequency of usage may change this value). Aquatron 4×100 is suitable for households of 5 persons living in holiday homes, or for small households (1-2 persons living full time).
The inner chamber should be turned 90 degrees clockwise approx. every 3-4 months. Hence, a full rotation cycle will take approximately 12-16 months. The actual turning/emptying frequency depends on usage, temperature in the compartment where the Bio Chamber is installed and if worms are used for composting or not. Turning the inner chamber 90 degrees clockwise means that the filled 100 liters section will get no more fresh solid waste, and will therefore compost the waste completely into soil which will make it easier and more pleasant to handle. When the first used chamber comes up for emptying, the refuse has been fully composted and has become transformed into approx. 10 liters of soil – perfect for the garden.
Optionally, instead of emptying the chamber, it may be used once or serveral times more before emptying.
The advantage with Aquatron 4×75, compared to the Aquatron model 90, is its full composting capability which makes waste handling easier and more pleasant.
It is worth considering that the pyramid with waste under the separator often needs to be turned away or pushed over as the height is lower than in the larger 4×100 and 4×200 systems.
Complement (equip) with Aquatron UV and/or phosphorus trap, if necessary, according to local regulations.
Technical data:
- Bio chamber height: 440mm
- Bio chamber height incl. center pipe: 540mm
- Water passage height with separator: 860mm
- Total height with separator: 965mm
- Outer diameter: 1300mm
- Chamber volume: 4 chambers, approx 75 liter each
- Weight: approx 50kg
Technical data
Height: 965mm
Weight: 50kg
Size of bio chamber (LxWxH): Biochamber size: 1300x1300x540mm
The chamber volume: Aquatron 4×100 is suitable for households of 3-4 persons living in holiday homes, or for small households (1-2 persons living full time)
Images

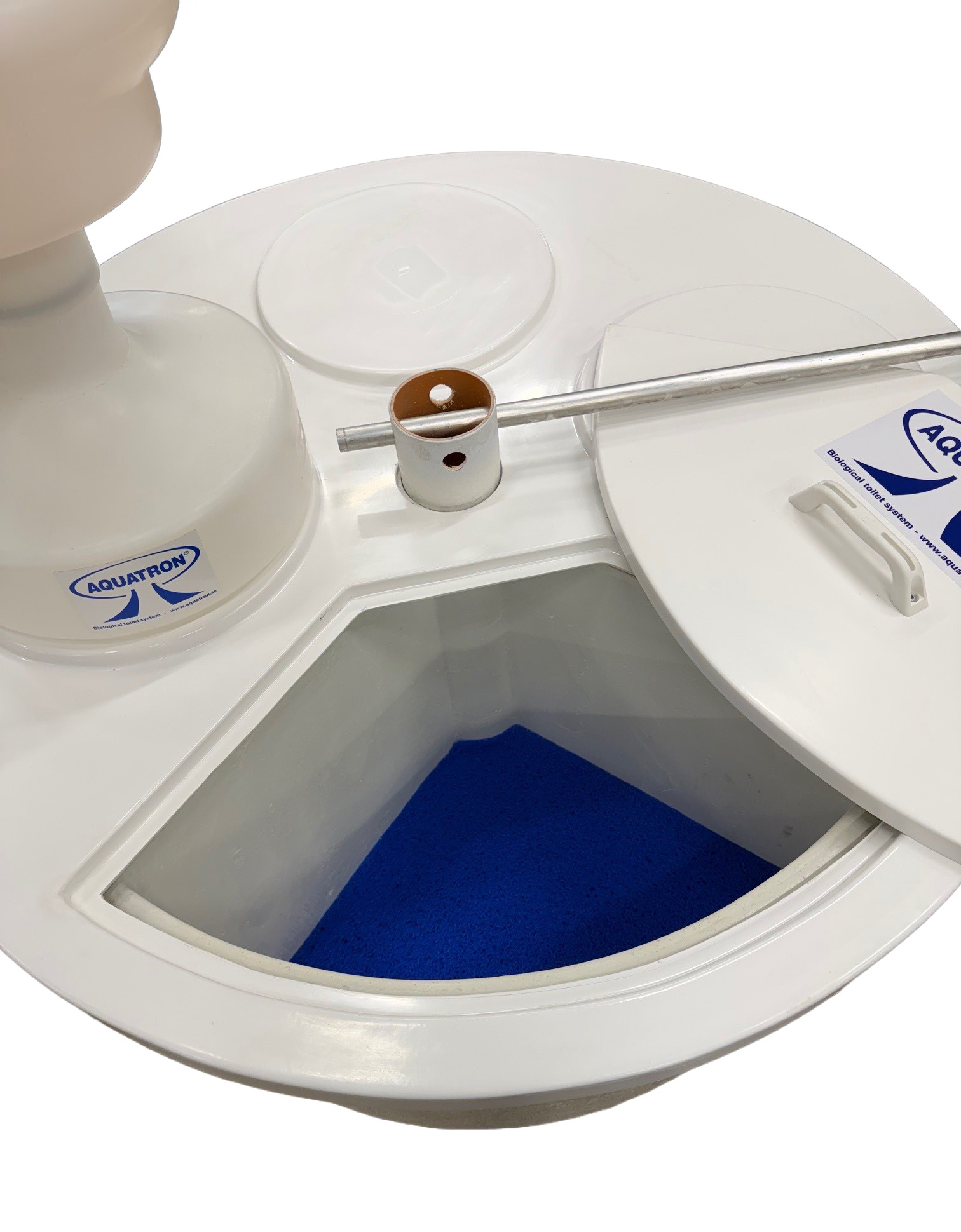

New lid with three different places to place the separator.
